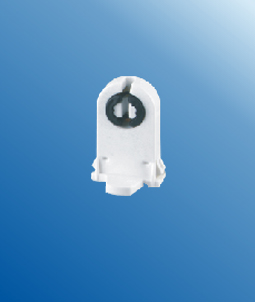

CE UL T8 Push through led fluorescent light socket lampholders

led fluorescent light socket lampholders G13 F02

T8 Push through led fluorescent light socket lampholders G13 F02:
With locating pin
Lamp axis: 29 mm
Rated voltage/current: 250V 2A
Working temperature: 220℃
Lamp holder shape: Round,Oval,tombstone
Contacting: Phosphor bronze contacts
PC body,
Weight.10g; Package: 2000pcs
Rated temperature: T130/Tm110
For wall thickness: 0.6-2.0 mm
Push wire terminals 2 holes: 0.5-1mm2.

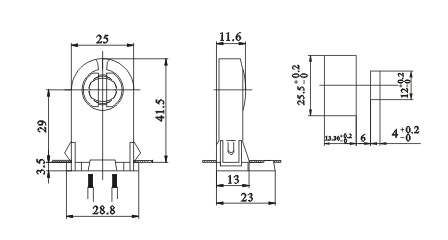

T8 Push through led fluorescent light socket lampholders G13 F02 drawing

The BI-PIN is the small electronic components, Any base with two metal pins for electrical contact. This is the typical base for a fluorescent tube of 1 to 4 feet in length. It consists of 2 prong contacts which connect into the fixture. Medium bi-pins are used with type T-8 and T-12 tubular fluorescent lamps, and miniature bi-pins are used for tubular T-5 fluorescent lamps.

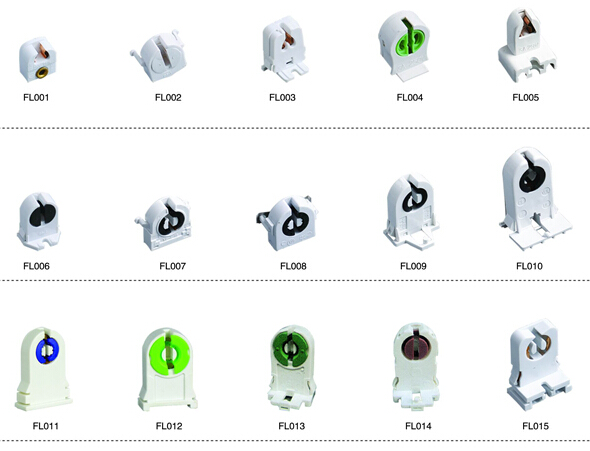

T8 fluorescent light fixture sockets catalogue
