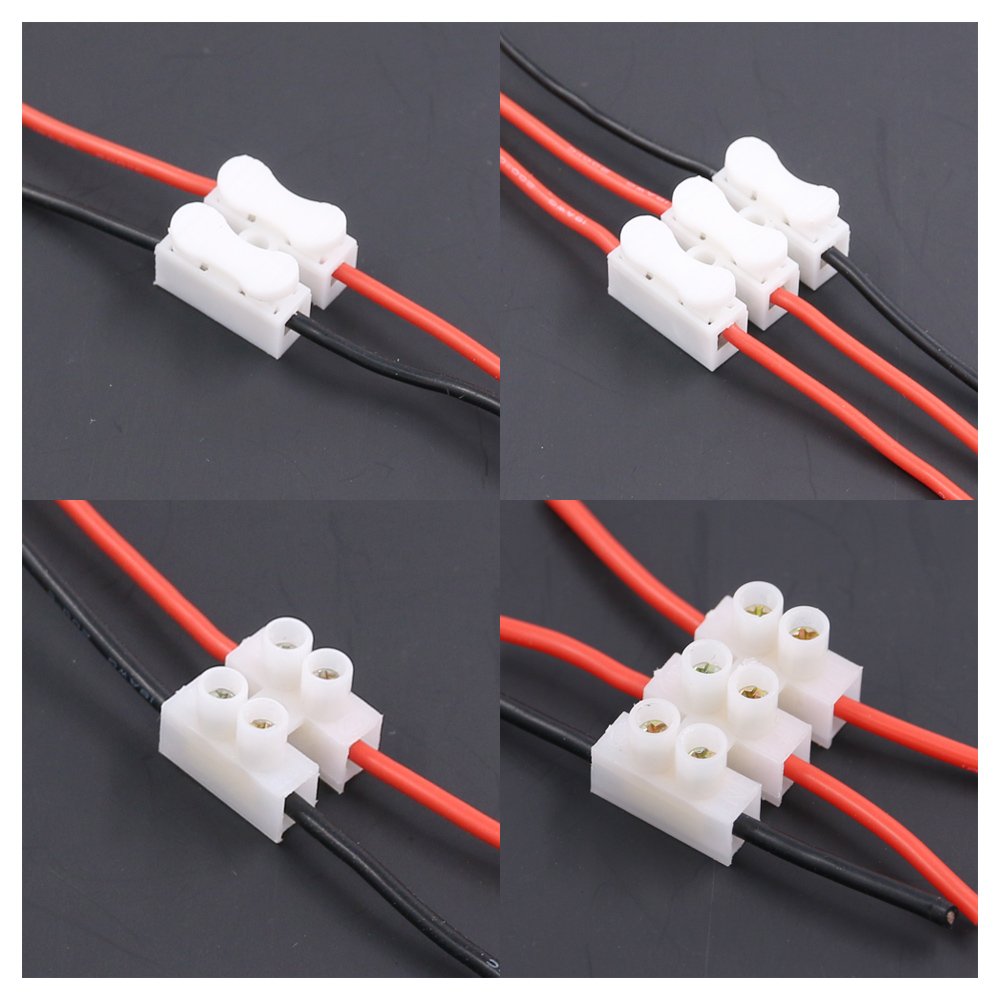

CH2 Spring Wire Quick Connector Electrical Terminals Block

CH2 Spring Wire Quick Connector Electrical Terminals Block Splice Clamp



CH2 Spring Wire Quick Connector Specification:


Part number: CH2 quick Splice
Poles: 2 Poles
Size: 17x19mm/0.66×0.76 inches
Rated Voltage: 250V
Rated Current: 10A
Continuous Service Temperature: 85℃ (Max.)
Actuation Type: Press Clip
Insulator: PP
Conductor: Metallic spring or copper screw
Color: White

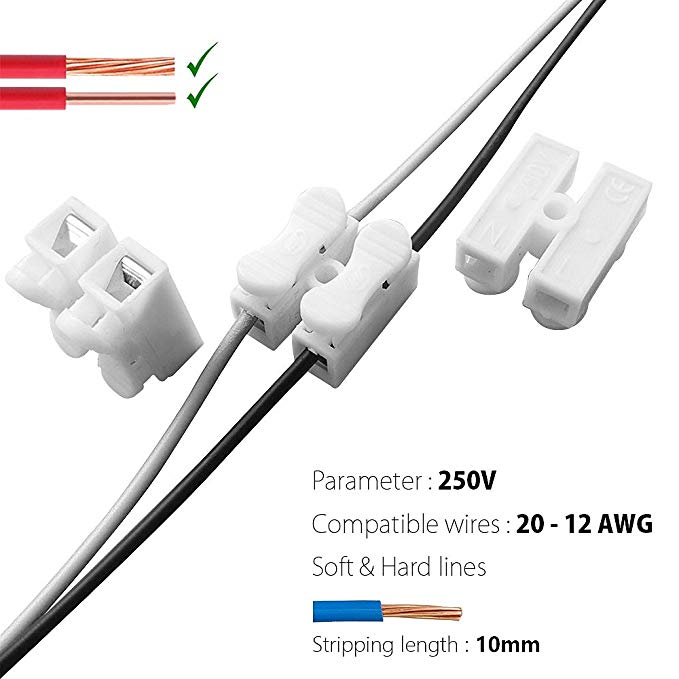

Wire Diameter: 0.5-2.5mm²/20-12AWG, soft hard wires
Strip length: 10mm

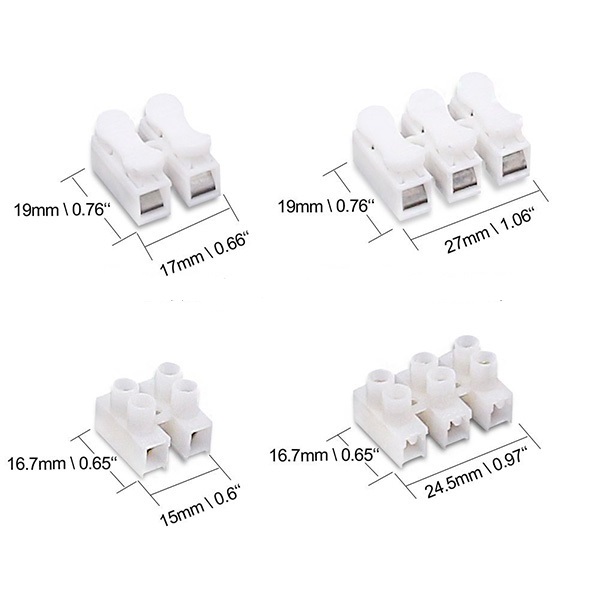

CH2 Spring Wire Quick Connector Electrical Terminals Block Splice Clamp Dimension

CH2 Spring Wire Quick Connector Terminals Block Splice Clamp Size

Item Name CH2 quick Splice
Material PP flame retardant plastic
Color white, as picture shows
Wiring range 0.5-2.5mm2/20-12AWG, soft hard wires
Rated Voltage 250V
Rated Current 10A
Sizes 19.5*17*13mm
Application LED Strip Light
Product Features 1.MARK OF THE CONNECTOR. The N is neutral wire, L is live wire.
2.INDEPENDENT DESIGN. No interference, using insulation flame retardant material and stainless-steel circlip structure, avoiding wires fall off, so that the copper conductor of the exposed wire is sealed in the plastic cavity. Avoid arcing, dustproof, moisture-proof.
3.NO TOOLS REQUIRED. Simple operation, saving time and effort. Hold down the item and press the terminal, and then put the peeled wires into the terminal, finally loose hands and finish the connection.
4.MULTIPURPOSE. Widely used in lighting, power and automotive wiring, motor, electrical control, household appliances, machinery and wire joints.
5.NOTICE: Please use it in the rated range. Do not connect high power electrical.
package 500pcs/bag

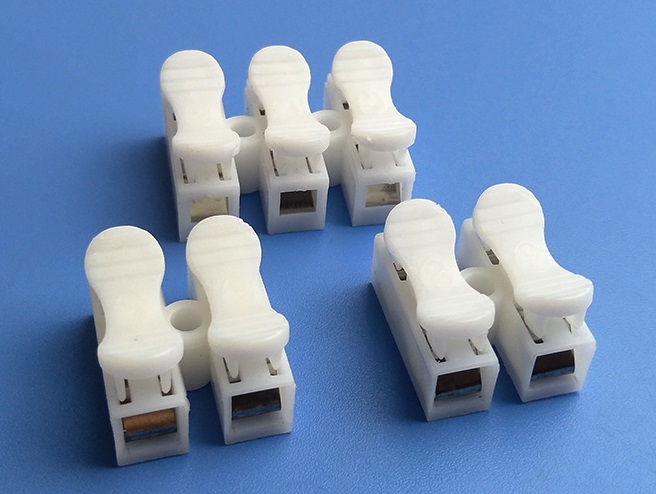

Push-on terminal block 2 Pins Electrical Cable Connectors CH2 quick Splice lock Wire terminals set.



CH2 Spring Wire Quick Connector Electrical Terminals Block Splice Clamp Specification





Three steps CH2 quick Splice to finish wire connecting:

  1. Press the spring clip / Loose the screws
  2. Insert wires
  3. Release the press clip / fasten the screws
CH2 Spring Wire Quick Connector application



A CH2 spring wire quick connector is an electrical component that uses a spring-loaded mechanism to securely and quickly connect wires together.

The connector commonly used in a variety of applications, such as lighting fixtures, electronic devices, and automotive systems.



FAQ:

What wire sizes are compatible with CH2 spring wire quick connectors?
Answer: They are compatible with a range of wire sizes, typically between 0.2mm² to 4mm².

What is the maximum current rating of CH2 spring wire quick connectors?
Answer: It varies, but most connectors have a current rating between 10A to 15A.

Are CH2 spring wire quick connectors suitable for outdoor use?
Answer: It depends on the model, but some connectors are designed for outdoor use.

Can CH2 spring wire quick connectors be used with stranded wires?
Answer: Yes, they can be used with both solid and stranded wires.

How many wires can be connected with a single CH2 spring wire quick connector?
Answer: It depends on the model, but most connectors can accommodate 2 to 4 wires.

Are CH2 spring wire quick connectors compatible with different wire materials?
Answer: Yes, they can be used with a variety of wire materials, such as copper and aluminum.

What is the temperature range for CH2 spring wire quick connectors?
Answer: It varies, but most connectors can withstand temperatures between -40℃ to 120℃.

Are CH2 spring wire quick connectors suitable for use in automotive wiring?
Answer: Yes, they can be used in automotive applications.
