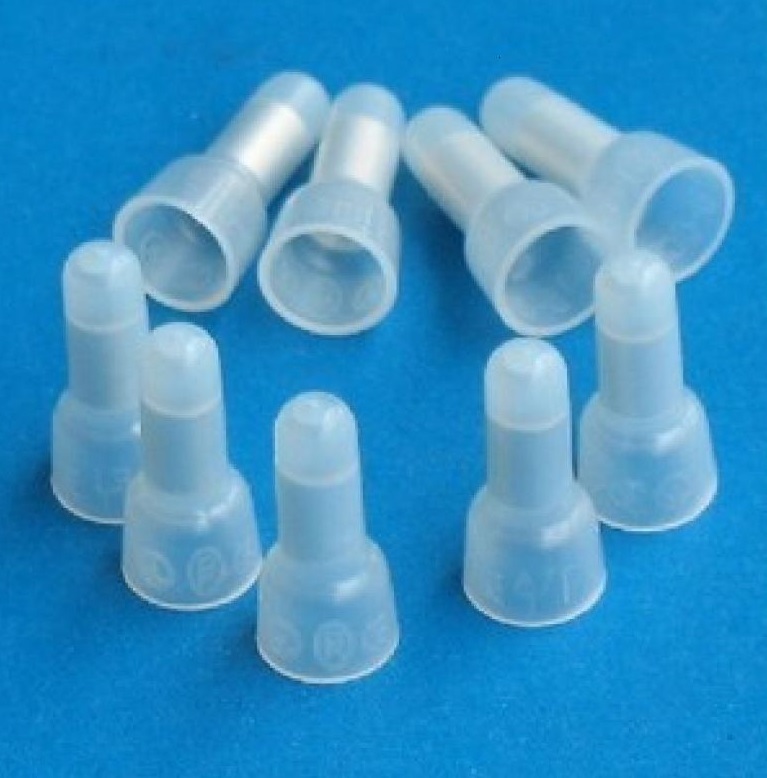

Closed-End Wire Connectors Crimp Terminals Cap White

Closed-End Wire Connectors Crimp Terminals Cap White

Closed-End Wire Connectors Crimp Terminals Cap White:
Material: Nylon 66
Nylon housing insert with tin-plated copper sleeve.
Strip wires per instruction strip length, twist wires together and insert intoconnector, then crimp by proper crimping tool.
Maximum operating temperature: 105 (221)
600 Volts maximum (1000 Volts for signs and fixtures)
UL Approved Nylon 66, 94V-2
Compliance with cUL, CSA , Rohs, REACH
Economic selection: Nylon housing insert with aluminum sleeve with UL approval.

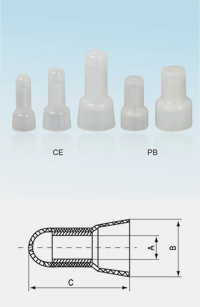

Closed-End Wire Connectors Crimp Terminals Cap Diagram

Closed-End Wire Connectors description:
Size: PA66 Plastic Wire Joint Connector End Closer Aluminium, Brass Tube Closed End Wire Connector.
Type: Pin
Terminal body: Copper
Finish: Tin plated
Insulation: Nylon
Standard: CE ROHS TUV SGS CQC
Packaging detail: 1000pcs per polybag, each bag per paper box
Delivery detail within 12 days

CE Colsed-End Wire Connectors:
Prevents the wire from shorting out by insulating the end of the wire
Applicable to all kinds of electrical appliances, home appliances, electrical, lighting, car audio,security installations,and electronic components of the wire terminal

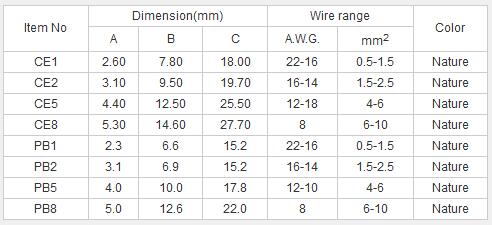

Closed-End Wire Connector Crimp Terminals Cap Specifications:
Material:PP (Polypropylene)
Color: Transparent
Tube length:7.0mm
Total length:20.0mm
Tube diameter:3.0mm
Out diameter:8.0mm
Range of usage: 1.0-3.0 strands, 16-14 AWG Wire

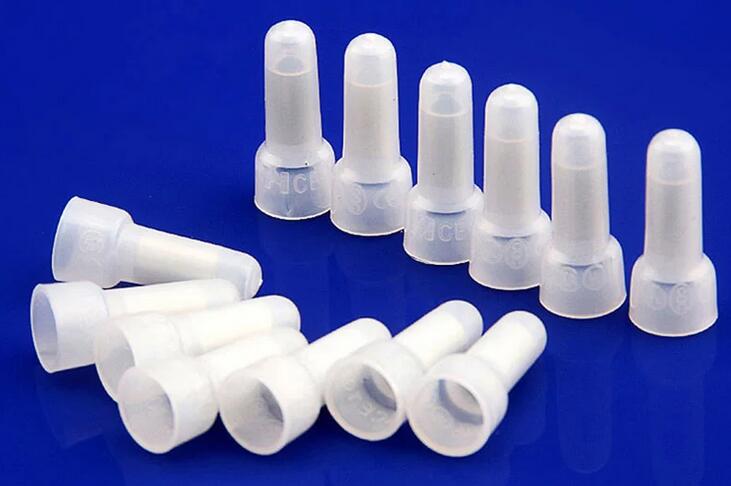

Closed-End Wire Connectors Crimp Terminals Caps White

OTHER PRODUCTS DESCRIPTION:
1: Made by high purity copper and brass
2: Tin plating: Corrosion Resistance
3: Certificate: CE RoHS ISO9001 UL SASO, TUV,
4: Color: Red/ Blue / Yellow/Orange/Black
5: Type: All kinds
6: Thickness: 0.6mm0.7mm 0.8mm 1.0mm or per customer’s requirements
7: Material: Brass & Copper & Aluminium
8: Material of insulation: PVC & NYLON & Heat Shrinkable Tubes
9: Wire section: A. W. G. 2, 4, 6, 8, 10&10-12 & 14-16 & 16-22
10: Why Choose Us: Perfessional Manufacture In Terminals From Year 1991
