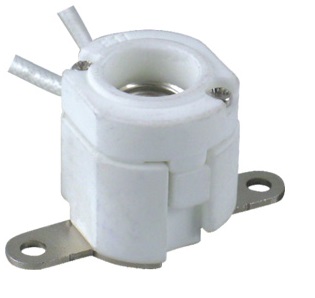

E11 porcelain halogen lamp holder socket base

MODELB-811 for halogen LED bulbs

Ratings: 7A 250V 300W
Body Material: Porcelain / Ceramic
Body Color: White

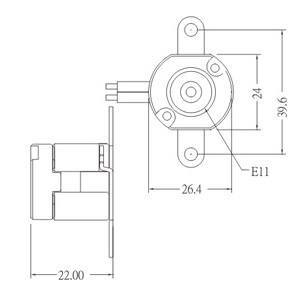

Overall height: 22mm
Wire Specification: UL3211 200°C 18 AWG
Lamp Base: E11
Certification and Standard: CE, VDE, cRUus.

An E11 porcelain halogen lamp holder is a type of socket used for E11 base halogen bulbs. It is made of porcelain, which is a durable and heat-resistant material.

FAQ:

What is an E11 porcelain lamp holder?
An E11 porcelain lamp holder is a type of socket used for E11 base halogen bulbs.

What is the maximum wattage for an E11 porcelain light socket?
The maximum wattage for an E11 porcelain light socket is usually around 100 watts.

What is the voltage rating for an E11 porcelain light socket?
The voltage rating for an E11 porcelain light socket is usually around 250V.

Can E11 porcelain lamp holders be used with LED bulbs?
No, E11 porcelain lamp holders are not compatible with LED bulbs.

What is the temperature rating for an E11 porcelain lamp holder?
The temperature rating for an E11 porcelain lamp holder depends on the materials used, but it is usually around 250°C.

Are E11 porcelain light sockets waterproof?
No, E11 porcelain light sockets are not waterproof.

How do you install an E11 porcelain lamp holder?
To install an E11 porcelain lamp holder, you need to connect the wiring to the contacts and screw the socket into place.

What type of cable is used with E11 porcelain light sockets?
E11 porcelain light sockets are usually used with 18AWG or 16AWG wire.

Can E11 porcelain light sockets be used in outdoor lighting fixtures?
No, E11 porcelain light sockets are not suitable for use in outdoor lighting fixtures.

What is the difference between E11 and E12 porcelain lamp holders?
E11 and E12 porcelain lamp holders are different sizes, with E11 being slightly larger and used for higher wattage bulbs.
