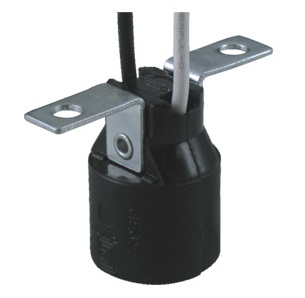

E17 Phenolic Lamp holder base with bracket GE-317-1

E17 Phenolic Lamp holder base with bracket GE-317-1



E17 Phenolic Lamp holder base with bracket GE-317-1


Rated Wattage: 75 W
Rated Voltage: 250 V
Body Material: Phenolic
Body Color: Black
Overall Height: 33.7 mm
Certification and Standard: CSA, UL.

An E17 Phenolic Lamp holder with brackets is a type of socket that is commonly used in a variety of lighting applications.

E17 Phenolic Lamp holder base is made of phenolic resin. This Bakelite material is known for its resistance to heat, strength, and non-conductive characteristics.

In the early days of lamp sockets, a material called Bakelite was used to manufacture these sockets. In fact, Bakelite was the name of those light bulb sockets.

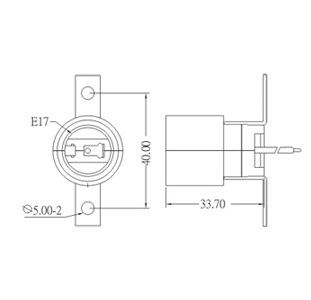

E17 Phenolic Lamp holder base with bracket GE-317-1 Drawing





FAQ:

What is the maximum voltage rating for an E17 Phenolic Lamp holder?
The maximum voltage rating for most E17 Phenolic Lamp holders is 250V.


What is the maximum wattage rating for an E17 Phenolic Lamp holder?
The maximum wattage rating for most E17 Phenolic Lamp holders is 660W.


What is the temperature rating for an E17 Phenolic Lamp holder?
The temperature rating for most E17 Phenolic Lamp holders is up to 180°C.


What materials are used to make an E17 Phenolic Lamp holder?
E17 Phenolic Lamp holders are typically made from phenolic material, which is a type of thermosetting plastic.





E12(E14)-S02C,E12(14)-CJD02,E12(E14)-CJS02 bakelite plastic lamp holders




What type of bulbs are compatible with an E17 Phenolic light socket?
E17 Phenolic light sockets are typically used with smaller bulbs such as appliance bulbs, night light bulbs, and intermediate base bulbs.


What is the thread size for an E17 Phenolic light socket with bracket?
The thread size for most E17 Phenolic light sockets is M14 x 1.0.


Are E17 Phenolic Lamp holders compatible with dimmer switches?
Some E17 Phenolic Lamp holders are compatible with dimmer switches, but it is important to check the specifications of the specific model.


Are E17 Phenolic light sockets waterproof?
Most E17 Phenolic light sockets are not waterproof and should not be used in wet or damp environments.


Are E17 Phenolic Lamp holders compatible with LED bulbs?
E17 Phenolic Lamp holders are compatible with LED bulbs, but it is important to check the specifications of the specific model.


How do I install an E17 Phenolic Lamp holder with brackets?
Installation instructions vary depending on the specific model, but most E17 Phenolic Lamp holders are designed to be easy to install using basic tools.


What is the difference between an E17 Phenolic Lamp holder and an E12 Phenolic Lamp holder?
The main difference is the size of the base of the bulb that is used. E17 bulbs have a larger base than E12 bulbs.
