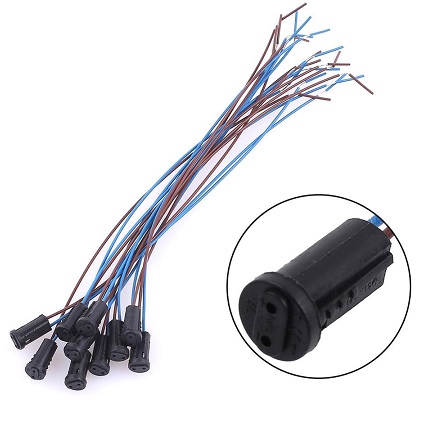

G4 plastic Bi-pin socket base MR11 lamp holder black 12V

G4 plastic Bi-pin socket base MR11 lamp holder black



G4 plastic Bi-pin socket base MR11 lamp holder black 12V for halogen led bulbs
Fixing: Snap In
Termination: Wire, Leads, Cable
Current Rating: 5A
Length: 15mm (Including 2.30mm Bezel)
Wire Length: 150mm
Suitable for G4 bulbs.
Suitable for low voltage only.

A G4 plastic Bi-pin socket is a type of lamp holder commonly used for low voltage halogen bulbs.





G4 plastic Bi-pin socket base MR11 lamp holder drawing size





Low voltage G4 plastic lamp holder for snap in panel mount fixing 7.5 to 7.8mm. Rated for application of up to 5A 24V with temperature rating of up to 210 degrees (T210). Supplied with 150mm of 0.75mm2 7599 single insulated Teflon wire (VDE) with ends stripped to 8mm. The wire is rated T180 degrees.

This low voltage G4 lamp holder has a plastic base and is supplied with 150mm Teflon insulated high temperature wires, stripped to 8mm and suitable for up to 180 degrees celcius. Rated at 5A 25V and suitable for up to 100W, ideal for use with LED, low voltage halogen and dichroic lamps. Snap in fixing to 7.5mm – 7.8mm panel cut out.

RoHS compliant and carrying UL and VDE approvals.



G4 plastic Bi-pin socket base MR11 lamp holder black 12V for halogen led bulbs



FAQ:

What is the maximum voltage that a G4 plastic socket can handle?
Most G4 sockets can handle up to 12V or 24V.

Can G4 plastic sockets be used with LED bulbs?
Yes, there are LED bulbs available with G4 pin configuration that can be used with G4 sockets.

What is the maximum wattage that a G4 plastic lamp holder can handle?
Most G4 lamp holders can handle up to 50W.

What materials are G4 plastic lamp holders typically made of?
G4 lamp holders can be made of plastic or ceramic materials.

Are G4 plastic Bi-pin sockets compatible with dimmer switches?
Yes, many G4 sockets are compatible with dimmer switches.

How do you install a G4 plastic Bi-pin socket?
G4 sockets are typically installed by pressing the pins into the socket until they click into place.

What types of fixtures are compatible with G4 plastic Bi-pin sockets?
G4 sockets are commonly used in desk lamps, under-cabinet lighting, and accent lighting fixtures.

Can G4 plastic lamp holders be used in outdoor lighting fixtures?
It depends on the specific socket and bulb being used, but many G4 sockets are not rated for outdoor use.

Are G4 plastic lamp holders interchangeable with other types of lamp holders?
No, G4 lamp holders have a specific pin spacing and are not interchangeable with other types of bi-pin sockets.
