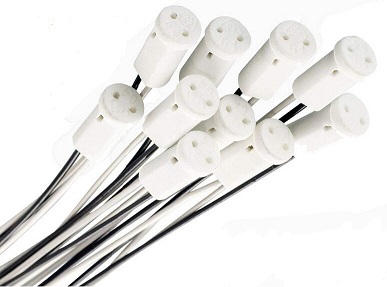

G4 plug in ceramic light bulb socket base wire connector

G4 snap in porcelain lamp holder socket base wire connector

G4 plug in ceramic light bulb socket base wire connector MR11 lamp holder white 12V for halogen led

Fixing: Snap In
Termination: Wire, Leads, Cable,
Current Rating: 5A
Length: 15mm (Including 2.30mm Bezel)
Wire Length: 150mm
Suitable for G4 bulbs.
Suitable for low voltage only.

A G4 G5.3 ceramic Bi-Pin lamp holder is a type of socket used for halogen and LED bulbs with a G4 or G5.3 bi-pin base. It is made of ceramic for better heat resistance and durability.

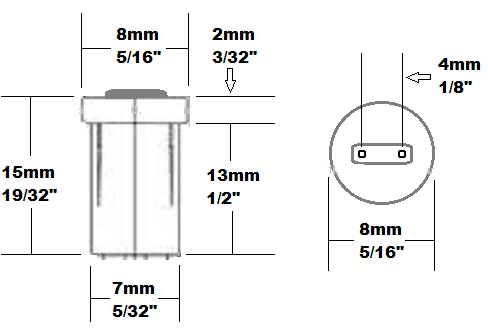

G4 plug in ceramic light bulb socket base wire connector drawing size

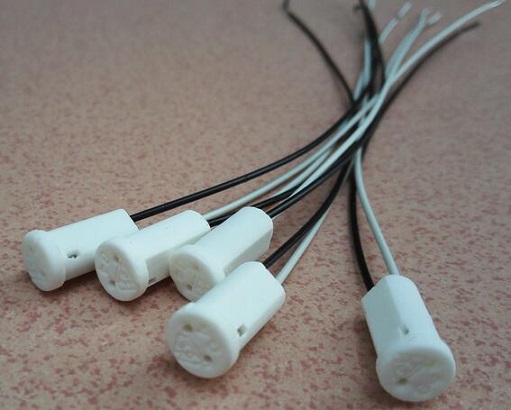

G4 / Mr11 Base Ceremic Lamp Holder Socket Cable for LED Lamps, Quartz Bulbs, Halogen bulbs, Crystal Lights, Grille Lamps, LED Ceiling Lights
The G4 Snap in Lamp Holder is 9mm wide x 16mm (approximately 17mm length)
Item Weight 2.08 ounces,
Type of Bulb： LED & Halogen
Rating: 12V 100W,
Lead wires: Max 200
Material: ceramic, with 30cm wires.
Shipping weight: 0.5KG/100pcs.

This low voltage G4 plug in light bulb socket has a ceramic base and is supplied with 150mm Teflon insulated high temperature wires, stripped to 8mm and suitable for up to 180 degrees Celsius.

Rated at 5A 25V and suitable for up to 100W, ideal for use with LED, low voltage halogen and dichroic lamps. Snap in fixing to 7.5mm – 7.8mm panel cut out. RoHS compliant and carrying UL and VDE approvals.

FAQ:

What is the difference between a G4 and G5.3 bi-pin base?
The G4 has a pin spacing of 4mm while the G5.3 has a pin spacing of 5.3mm.

What is the maximum wattage for a G4 G5.3 ceramic Bi-Pin Base?
The maximum wattage depends on the specific model, but most G4 G5.3 ceramic Bi-Pin Bases can handle up to 50 watts.

Is a G4 G5.3 ceramic Bi-Pin Base compatible with LED bulbs?
Yes, a G4 G5.3 ceramic Bi-Pin Base is compatible with both halogen and LED bulbs with a G4 or G5.3 bi-pin base.

Can a G4 G5.3 ceramic Bi-Pin socket be used with a dimmer switch?
Yes, some G4 G5.3 ceramic Bi-Pin sockets are compatible with dimmer switches, but it depends on the specific model.

Is a G4 G5.3 ceramic Bi-Pin Base suitable for outdoor use?
Yes, a G4 G5.3 ceramic Bi-Pin Base can be used for outdoor lighting, but it should be protected from moisture and water.

What is the voltage rating for a G4 G5.3 ceramic Bi-Pin socket?
The voltage rating for a G4 G5.3 ceramic Bi-Pin socket is usually around 12V or 24V.

How do you install a G4 G5.3 ceramic Bi-Pin socket?
Installation is simple – just push the bi-pin connectors of the bulb into the socket.

Can a G4 G5.3 ceramic Bi-Pin Base be used in a track lighting system?
Yes, a G4 G5.3 ceramic Bi-Pin Base can be used in a track lighting system that is compatible with bi-pin base bulbs.

What is the temperature range for a G4 G5.3 ceramic Bi-Pin Base?
The temperature range for a G4 G5.3 ceramic Bi-Pin Base is typically around -40°C to +300°C.

Is a G4 G5.3 ceramic Bi-Pin socket shock resistant?
Yes, the ceramic material of a G4 G5.3 ceramic Bi-Pin socket makes it shock resistant.

Does a G4 G5.3 ceramic Bi-Pin Base come with a warranty?
2 years.
