G5 Push on T5 fluorescent lamp holders base Screw fixing

G5 Push on T5 fluorescent lamp holders base Screw fixing

G5 Push on T5 fluorescent lamp holders base Screw fixing:
Without fixing
Lamp axis:16
PC body,Phosphor bronze contacts
Wt.3.1g Pkg.500pcs
Rated temperature: T110
Push wire terminals 1 holes: 0.5-1 mm2

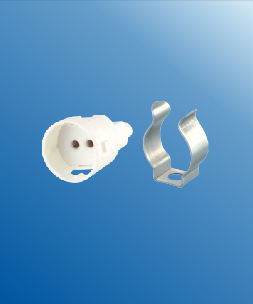

Lamp support for T5 lamps

Screw fixing for G5 Push on lamp holders:
Lamp axis:10.3
Metal body
Wt.1.5g Pkg.100pcs
OEM: Acceptable
Payment Method T/T: 30% deposit, balance before shipment.

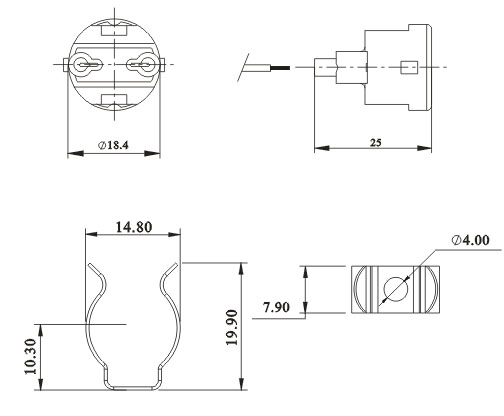

T5 fluorescent lamp holders base Screw fixing diagram

Commercial Grade T5 fluorescent lamp holders base Screw fixing are for use with fluorescent lighting fixtures in flush or surface mount applications. Captive pal nut for easy mounting. Push-in wire terminals feature release slots.

James lighting produces Fluorescent Lamp holders for virtually every light source equipped with fluorescent, LED, incandescent, or CFL lamps. Fluorescent Lamp holders include incandescent medium base, and specialty sizes & G5 fluorescent lamp holders base Screw fixing.
