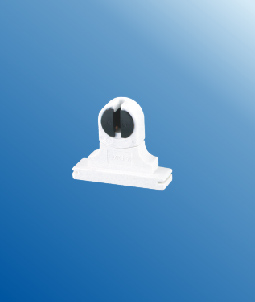

G5 slide on fluorescent LED lamp holders F288 Z

T5 G5 slide on fluorescent LED lamp holders F288 Z

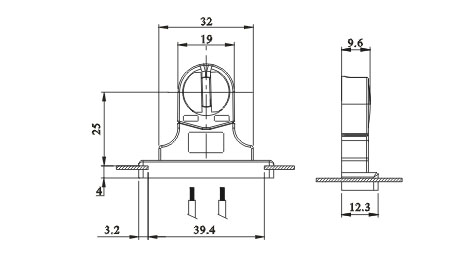

Lamp axis: 25mm
Rated voltage/current: 250V 2A
Working temperature: 220℃
Lamp holder shape: Round, Oval, tombstone
Contacting: Phosphor bronze contacts,
stainless spring, PC body,
Rated temperature: T130/Tm110
For wall thickness: 0.6-1.0 mm
Push wire terminals 2 holes: 0.5-1mm2.
Weight: 4g; Package: 3000pcs
OEM: Acceptable
Carton Size: 46cm×35.5cm×35cm
Weight: 15KG
Payment Method T/T: 30% deposit, balance before shipment.

Fluorescent (T5) lamp holder :
Type of Bulb: Fluorescent, LED, CFL lamps
Base: Turn-type T5 (medium Bi-Pin)
HS code: 9405920000
T5 lamp holder is suitable for all kinds of fluorescent light lamp.
All G5 slide on fluorescent LED lamp holders should pass 4 quality inspections before loading.
QC Standard: CE,CQC,CUL,VDE,UL,PSE.

Single G5 slide on fluorescent LED lamp holders lighting fixture:
1) 220v 50HZ or 110v 60HZ.
2) double tubes or single tube for option.
3) can suit for T5 led tube, or fluorescent tube
4) matetial is iron
5) excellent quality and cpmetitive price.
The lamp holder allows you to connect a live and neutral wire to one end of the tube.
Caution: to avoid risk of fire make sure your tubes do not exceed the recommended wattage indicated on your light fixture.

t5 lamp holde catalogue
