G9 lamp holder socket power wire and metal bracket

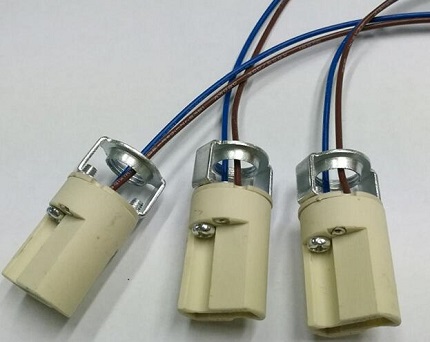

G9 Ceramic Lamp holders socket base with bracket fixture 250V 2A for Halogen LED bulbs

G9 ceramic lamp holder socket base Power Wire and Metal Bracket fixture for AC85~265V 220v halogen led bulbs
Model: G9 lamp socket base
Voltage: AC110V-250V
Electric current: 2A
wire cross-sectional area: 0.3mm2
Bring Support Lamp Base Size:3.5x2cm(Diameter 2cm)
Teflon high temperature wire.

G9 ceramic lamp holder socket Power Wire and Metal Bracket Set

G9 porcelain light bulb socket base features:
Small size, light weight, easy to install
Suitable for G9 type quartz bulbs, halogen lamp, LED bulbs, etc
Suitable for LED Halogen CFL Light Bulb Converter
Suitable for all voltage:110V, 120V, 130V, 220V, 240V, 260V
Porcelain Socket, silica gel coated wire lead.

This mains voltage G9 lamp holder socket has a ceramic base and is supplied with 200mm Teflon insulated high temperature wires, stripped to 8mm and suitable for up to 180 degrees celcius. Body is rated up to 250 degrees celcius. Rated at 2A 250V and suitable for up to 500W, ideal for use with LED lamps, and halogen lamps. RoHS compliant and carrying UL and ENEC approvals.

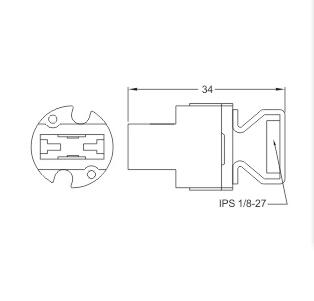

G9 porcelain Lamp holders socket base diagram drawing size

G9 Ceramic lamp holders applied to the conversion lamp screw lamp holders by Edison screw caps and matching screw base G9 lamp sockets combination, the G9 lamp holder socket power wire and metal bracket including two for contact with light feet metal member, each of the two guide wire is connected to the screwed mouth of the lamp cap screw sleeve and G9 lampholders for contacting lamp pin between the metal member and the screw base backsheet and another for contacting lamp pin between metal parts.

Feet of the present invention allows the G9 lamps bulbs, such as single-ended halogen bulb Edison porcelain lamp holders for easy application.
