E39 mogul porcelain socket base 600V 1500W 18″ leads

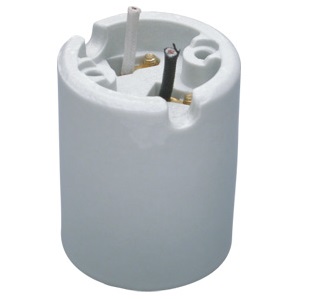

E39 mogul porcelain socket base

GE-6042-2 mogul porcelain lamp holder socket base E39:
E39 6kv pulse rated HID mogul lamp base with captive screws and 18″ leads,
Rated Wattage: 1500 W
Rated Voltage: 600 V
Pulse Rated: 4 KV Pulse Rated
Body Material: Porcelain/Ceramic
Body Color: White
Wire Terminal: SF-2 600 V 200°C 16 AWG
Overall Height: 69 mm
Certification and Standard: UL, cUL.

E39 mogul porcelain socket base diagram

The E39 6kv pulse rated HID mogul lamp base are used in open rated HID lighting fixtures.
The lamps most commonly used in the hobby are single-ended, with a screw-type mounting base. The size of the base and the threads is also described by a code, although names are more commonly used. For example, Base – E39 is commonly called a mogul porcelain light bulb socket.

European lamps also have a mogul base, but it is slightly different from the E-39 and is called E40. The differences are small enough that the E40 base lamps will work fine in the typical E39 mogul base used in the U.S. Double-ended 150-watt lamps use the RSC (RX7s) base, while the 250-watt double-ended lamps use the Fc2 base.
