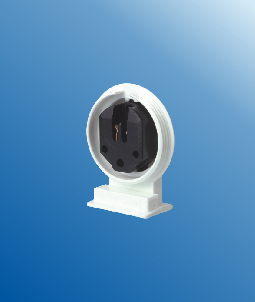

T5 G5 Protected lampholders with twin slots lamp insertion

T5 G5 Protected lampholders with twin slots lamp insertion

T5 G5 dustproof protected lamp holders with twin slots lamp insertion screw F31 DT5
Screw fixing foot
PC body,PBT interior,
Phosphor bronze contacts
Wt.16g Pkg.50pcs
Rated temperature: T140/Tm110
IP67
Push wire terminals 2 holes: 0.5-1 mm2/18 AWG

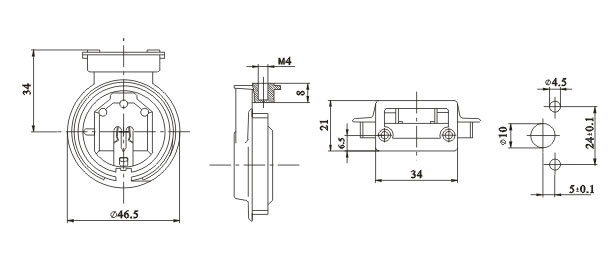

T5 G5 Protected lampholders Diagram

Rapid Start Applications Tall Rotary Locking T5/T8/T12 Used in Troffers and Wrap Fixtures for Retro Fit Kits/Replacements Snap Wing Mounting Made from area 660W-600V.

Commercial Grade Fluorescent Lamp holders Medium Bi-Pin Sockets are for use with fluorescent lighting fixtures in flush or surface mount applications. Captive pal nut for easy mounting. Push-in wire terminals feature release slots.

James lighting produces Fluorescent Lamp holders for virtually every light source equipped with fluorescent, LED, incandescent, or CFL lamps. Fluorescent Lamp holders include incandescent medium base, and specialty sizes & fluorescent light fixture holders.
