T5 push in fluorescent LED lamp holders G5 F288 G

T5 push in fluorescent LED lamp holders G5 F288 G

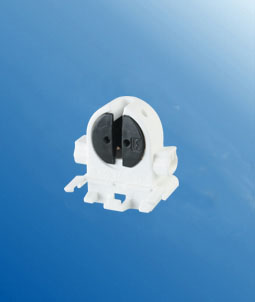

Single T5 push in fluorescent LED lamp holders G5 F288 G
Rated voltage/current: 250V 2A
Working temperature: 220℃
Lamp holder shape: Round, Oval, tombstone
Contacting: Phosphor bronze contacts,
stainless spring, PC body,
Rated temperature: T130/Tm110
For wall thickness: 0.6-1.0 mm
Push wire terminals 2 holes: 0.5-1mm2.
Weight: 4g; Package: 3000pcs
OEM: Acceptable
Carton Size: 46cm×35.5cm×35cm
Weight: 15KG
Payment Method T/T: 30% deposit, balance before shipment.

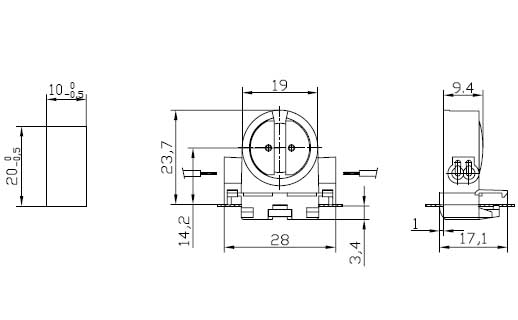

T5 push in fluorescent LED lamp holders G5 F288 G diagram

T5 lamp substitution traditional lamp, a T5 push in fluorescent LED lamp holders G5, characterized in that the profile cavity around the muzzle and the tail, respectively with or without projecting left end of the seat, the right end of the seat a tight fit, the left seat and the middle of the right end of the seat of the lamp holder and the lampholder were built into the rotor core and rotor core, with the cover and the core of the core power connector cover with the rotor core and rotor core tighten.

t5 led lamp holder all types

The main features of the present invention is directly substitution of traditional magnetic ballasts ray tube bracket the Grid Light the lamp, installed as replacement of a lamp so simple; 2 high luminous efficiency, color rendering index high, fast startup, long life, energy saving, no flicker, no noise, interference with the advantages of traditional inductive ballast bracket can not reach; 3. than traditional magnetic ballast saving 50% of the light pipe bracket.
