T5 single fluorescent LED lamp holders G5 light sockets

T5 single fluorescent LED lamp holders G5 F277 FB1

T5 single fluorescent LED lamp holders G5 F277 FB1
Snap in/ screw fixing foot
Lamp axis: 13.5mm/16mm
Rated voltage/current: 250V 2A
Working temperature: 220℃
Lamp holder shape: Round, Oval, tombstone
Contacting: Phosphor bronze contacts,
stainless spring, PC body,
Rated temperature: T130/Tm110
For wall thickness: 0.6-1.2 mm
Push wire terminals 2 holes: 0.5-1mm2.
Weight: 4g; Package: 3000pcs
OEM: Acceptable
Carton Size: 46cm×35.5cm×35cm
Weight: 15KG
Payment Method T/T: 30% deposit, balance before shipment.

T5 single fluorescent LED lamp holders:
Type of Bulb: Fluorescent, LED, CFL lamps
Base: Turn-type T5
HS code: 9405920000
T5 lamp holder is suitable for all kinds of fluorescent light lamp.
All T5 Fluorescent lamp holders should pass 4 quality inspections before loading.
QC Standard: CE, CQC, CUL, VDE, UL, PSE.

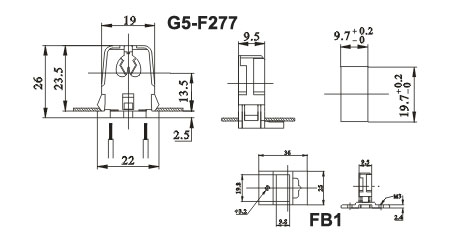

T5 single fluorescent LED lamp holders G5 F277 FB1 diagram



T5 single fluorescent LED lamp holders lighting fixture:
1) 220v 50HZ or 110v 60HZ.
2) double tubes or single tube for option.
3) can suit for T8/T10 led tube, or fluorescent tube
4) material is iron
5) excellent quality and competitive price.
The lamp holder allows you to connect a live and neutral wire to one end of the tube.
Caution: to avoid risk of fire make sure your tubes do not exceed the recommended wattage indicated on your light fixture.

A T5 single fluorescent lamp holder is a base used to hold and connect a T5 fluorescent light bulb, typically in a commercial or industrial setting.

James lighting produces Fluorescent Lamp holders for virtually every light source equipped with fluorescent, LED, incandescent, or CFL lamps. Fluorescent Lamp holders include incandescent medium base, and specialty sizes & T5 fluorescent LED lamp holders.







FAQ:

What is the maximum wattage supported by T5 single fluorescent lamp holders?
A: T5 single fluorescent lamp holders typically support up to 54 watts.

Are T5 single fluorescent lamp sockets compatible with LED bulbs?
A: No, T5 single fluorescent lamp sockets are only compatible with T5 fluorescent bulbs.

What is the standard length of T5 single fluorescent lamp sockets?
A: The standard length of T5 single fluorescent lamp sockets is 22 inches.

What is the voltage rating for T5 single fluorescent light sockets?
A: The voltage rating for T5 single fluorescent light sockets is typically 120-277V.

Can T5 single fluorescent light sockets be used in outdoor settings?
A: Yes, some T5 single fluorescent light sockets are rated for outdoor use.

Are T5 single fluorescent lamp sockets dimmable?
A: Some T5 single fluorescent lamp sockets are dimmable, but not all.

What is the material of T5 single fluorescent lamp holders?
A: T5 single fluorescent lamp holders are typically made of plastic or metal.

Can T5 single fluorescent lamp holders be used with electronic ballasts?
A: Yes, T5 single fluorescent lamp holders are compatible with electronic ballasts.
