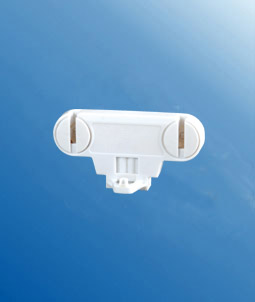

T5 Twin fluorescent LED lamp holder sockets F288 C1

T5 Twin fluorescent LED lamp holders F288 C1



T5 Twin fluorescent LED lamp holders F288 C1


Snap in foot with locating pin
Rated voltage/current: 250V 2A
Working temperature: 220℃
Lamp holder shape: Round, Oval, tombstone
Contacting: Phosphor bronze contacts,
stainless spring, PC body,
Rated temperature: T130/Tm110
For wall thickness: 0.6-1.0 mm
Push wire terminals 2 holes: 0.5-1mm2.
Weight: 4g; Package: 3000pcs
OEM: Acceptable
Carton Size: 46cm×35.5cm×35cm
Weight: 15KG
Payment Method T/T: 30% deposit, balance before shipment.

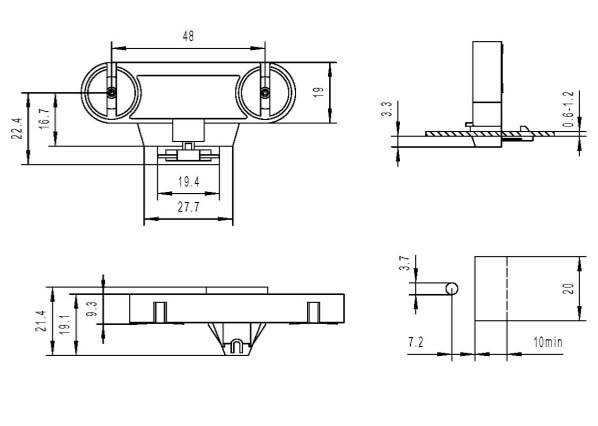

T5 Twin fluorescent LED lamp holders F288 C1 diagram



A T5 Twin fluorescent lamp holder is a type of lighting fixture that holds two T5 fluorescent tubes.

It is commonly used in commercial and industrial applications where high-quality lighting is needed.

The linear fluorescent light sockets continue to grow with the newly introduced T5 series featuring rotary lamp-lock technology and bottom push-in wiring.

Our linear fluorescent brochure details the many different mounting, wire insertion and lamp insertion configurations available.

T5 Twin fluorescent LED lamp holders, med bi-pin, turn type, dedicated T5, snap-in mounting, 660w-600v. UL and CSA. With internal shunt.





T5 Twin fluorescent LED lamp holders all types





FAQ:

What is the typical lifespan of T5 Twin lamp holders?
The lifespan of T5 Twin lamp holders varies depending on the quality of the fixture and the frequency of use, but they typically last between 10,000 and 20,000 hours.

Can T5 Twin lamp sockets be used outdoors?
Yes, T5 Twin lamp sockets can be used outdoors as long as they are protected from the elements and moisture.

Are T5 Twin lamp sockets compatible with LED tubes?
No, T5 Twin lamp sockets are specifically designed for T5 fluorescent tubes and are not compatible with LED tubes.

What is the recommended mounting height for T5 Twin lamp holders?
The recommended mounting height for T5 Twin lamp holders is typically between 8 and 10 feet.





T5 G5 light bulb sockets fluorescent lamp holder





What is the difference between T5 Twin and T8 Twin lamp holders?
T5 Twin lamp holders are designed for T5 fluorescent tubes, which are thinner and more energy-efficient than T8 tubes.

What is the typical color temperature for T5 Twin lamp sockets?
The typical color temperature for T5 Twin lamp sockets is 5000K, which is a cool white color.

Can T5 Twin lamp holders be used with electronic ballasts?
Yes, T5 Twin lamp holders are designed to work with electronic ballasts, which are more energy-efficient than magnetic ballasts.

What is the difference between T5 Twin and T5 HO lamp holders?
T5 HO lamp holders are designed for T5 high-output fluorescent tubes, which are brighter and more powerful than standard T5 tubes.
