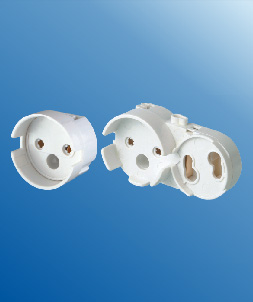

T8 Push on fluorescent LED tube lamp holders G13 Base

T8 Push on fluorescent LED tube lamp holders G13 F05 DS

T8 Push on fluorescent LED tube lamp holders G13 F05 DS:
Snap in pins
Lamp axis: 26 mm
With big rotor
Rated voltage/current: 250V 2A
Working temperature: 220℃
Lamp holder shape: Round,Oval,tombstone
Contacting: Phosphor bronze contacts,
stainless spring, PC body,
Rated temperature: T130/Tm110
For wall thickness: 0.5-1.1 mm
Push wire terminals 2 holes: 0.5-1mm2.
OEM: Acceptable
Packing: 1000pcs/ctn
Carton Size: 46cm×35.5cm×35cm
Weight: 27KG
Payment Method T/T: 30% deposit, balance before shipment.

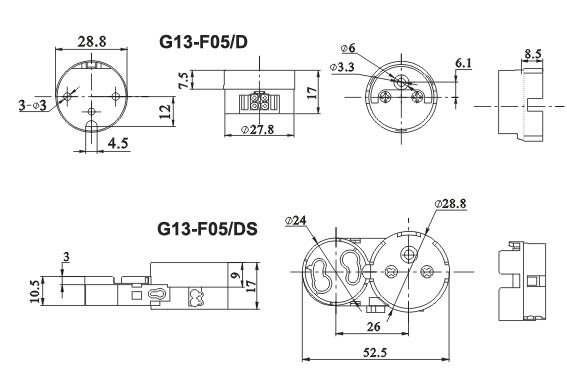

fluorescent LED tube lamp holders G13 F05 DS diagram

Fluorescent LED tube lamp holders G13, commonly called “fluorescent lamp holder”, LED holders for fluorescent lamps: tube T5, T8, T12 and T2 with reduced dimensions, Slimline, circular, VHO (Very High Output) lamps and HO (High Output) with high luminous efficiency, “U” shaped and compact fluorescent lamps. LED tubes are the most used lamps for the internal lighting of industrial and commercial areas.

fluorescent lamp holder all types
