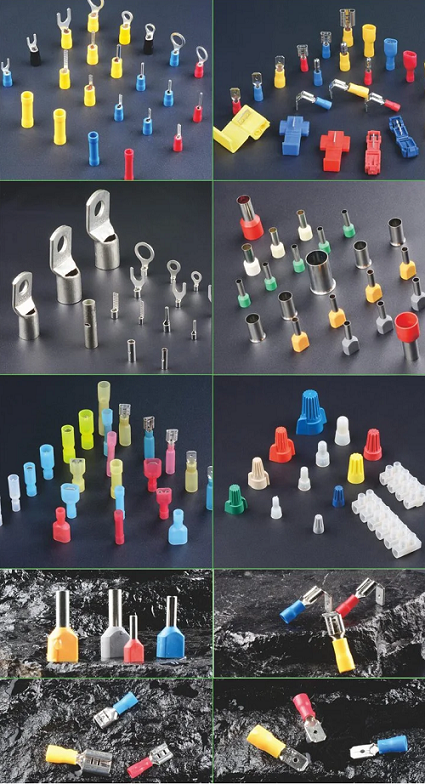

Terminal block Connector Caps Category Overview

Terminal block Connector Caps instructions
Terminal block Connector Caps Category Overview

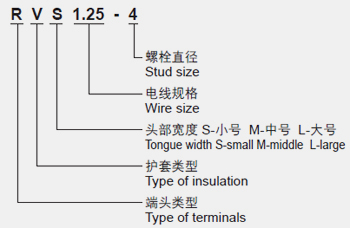

Introduction 1

RRing terminals
SSpade terminals
HHook terminals
PTPin terminals
FDFemale Disconnects
MDMale Disconnects
FRFemale Receptacle Disconnects
MPMale Bullet Disconnects
DBBlade terminals
LSLocking Spade terminals
FSFlange Spade terminals
LBLipped Blade terminals
BVButt Connectors
FLDFlag Female Disconnects
FDFFemale Disconnects Fully Ins
PVTParallel Connectors
PBDPiggy Back Disconnects

Introduction 2

SpecificationSize
1100.110″ (2.8mm)
1870.187″ (4.75mm)
2050.205″ (5.2mm)
2500.250″ (6.35mm)
3120.312″ (8.0mm)
3750.375″ (9.4mm)
1560.156″ (4mm)
1760.176″ (4.5mm)
1950.195″(5mm)

Introduction 3

Wire sizeWire range (mm2)(A.W.G.)
1.250.5-1.522-16
21.5-2.516-14
3.52.5-414-12
5.54-612-10
86-108
1410-166
2216-254
3825-352
6050-701/0
7070-952/0
8095-1203/0
100120-1504/0
150150-185250/300MCM
180185-240300/350MCM
200240-300400/500MCM
325300-400500/600MCM

Introduction 4
