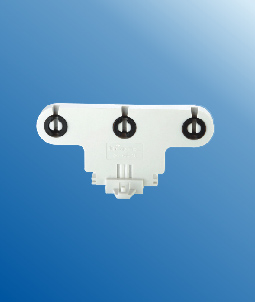

Triple fluorescent LED tube lamp holders G13 T8

Triple fluorescent LED tube lamp holders G13 F263 C

Triple fluorescent LED tube lamp holders G13 F263 C Base
Snap in foot with locating pin
Rated voltage/current: 250V 2A
Working temperature: 220℃
Lamp holder shape: Round,Oval,tombstone
Contacting: Phosphor bronze contacts,
Rated temperature: T130/Tm110
For wall thickness: 0.6-1.0 mm
Push wire terminals 2 holes: 0.5-1mm2.
OEM: Acceptable
Packing: 1000pcs/ctn
Carton Size: 46cm×35.5cm×35cm
Weight: 27KG
Payment Method T/T: 30% deposit, balance before shipment.

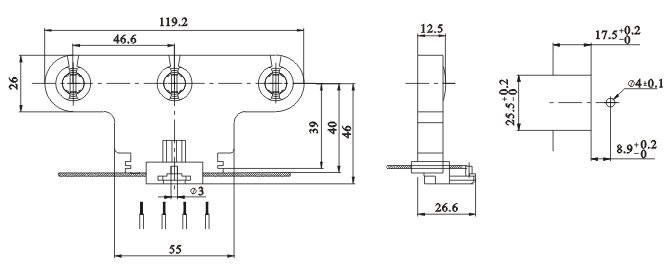

Triple fluorescent LED tube lamp holders G13 F263 C Diagram

Triple fluorescent LED tube lamp holders lighting fixture:
1) 220v 50HZ or 110v 60HZ.
2) double tubes or single tube for option.
3) can suit for T8/T10 led tube, or fluorescent tube
4) matetial is iron
5) excellent quality and cpmetitive price.
The lamp holder allows you to connect a live and neutral wire to one end of the tube.
Caution: to avoid risk of fire make sure your tubes do not exceed the recommended wattage indicated on your light fixture.

fluorescent lamp holder all types

The BI-PIN is the small electronic components, Any base with two metal pins for electrical contact. This is the typical base for a fluorescent tube of 1 to 4 feet in length. It consists of 2 prong contacts which connect into the fixture. Medium bi-pins are used with type T-8 and T-12 tubular fluorescent lamps, and miniature bi-pins are used for tubular T-5 fluorescent lamps.
