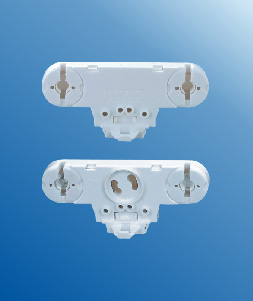

Twin fluorescent lamp sockets with starter holder T8 G13

Twin fluorescent LED tube lamp sockets with starter holder G13 F263 AB

Twin fluorescent LED lamp sockets with starter holder G13 F263 AB
Snap in foot with locating pin
Rated voltage/current: 250V 2A
Working temperature: 220℃
Lamp holder shape: Round, Oval, tombstone
Contacting: Phosphor bronze contacts,
stainless spring, PC body,
Rated temperature: T130/Tm110
For wall thickness: 0.6-1.0 mm
Push wire terminals 2 holes: 0.5-1mm2.
OEM: Acceptable
Packing: 1000pcs/ctn
Carton Size: 46cm×35.5cm×35cm
Weight: 28KG
Payment Method T/T: 30% deposit, balance before shipment.

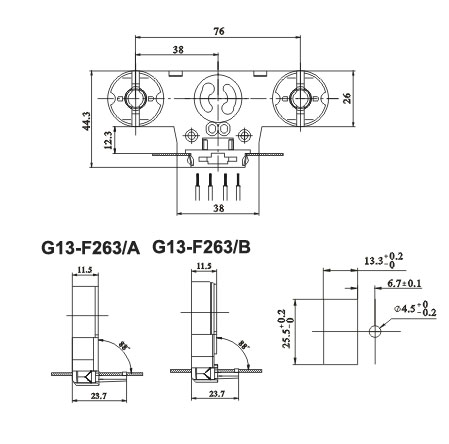

Twin fluorescent LED tube lamp sockets with starter holder G13 F263 AB diagram

T8 Twin fluorescent lamp sockets with starter holder G13 :
Type of Bulb: Fluorescent, LED, CFL lamps
Base: Turn-type T8 (medium Bi-Pin)
HS code: 9405920000
T8 lamp holder is suitable for all kinds of fluorescent light lamp.
All T8 Fluorescent lamp holder should pass 4 quality inspections before loading.
QC Standard: CE,CQC,CUL,VDE,UL,PSE.

fluorescent lamp holder all types

The linear Twin fluorescent lamp sockets with starter holder G13 continues to grow with the newly introduced T8 series featuring rotary lamp-lock technology and bottom push-in wiring. Our linear fluorescent brochure details the many different mounting, wire insertion and lamp insertion configurations available. fluorescent light sockets, med bi-pin, turn type, dedicated T8, snap-in mounting, 660w-600v. UL and CSA. With internal shunt.
